Uncuttable material

Description:

Proteus – Uncuttable Material – Lightweight Armour to Unbreakable bike-locks

Key benefits

  • Proven resistance to:

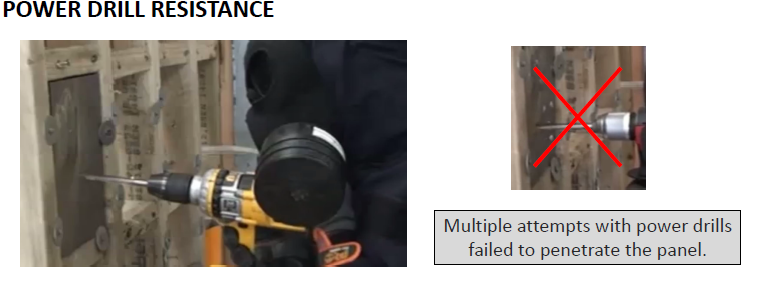

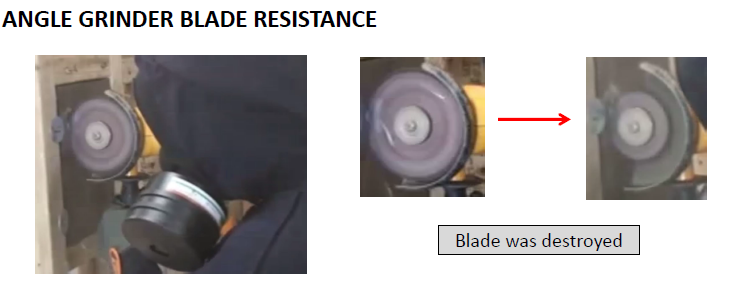

    • Drills, angle grinders and waterjet
  • Lightweight
    • Current panels 10-15% weight of equivalent Steel
  • Lightweight Ballistic performance
  • Lightweight blast resistance
  • Lightweight thermic resistance

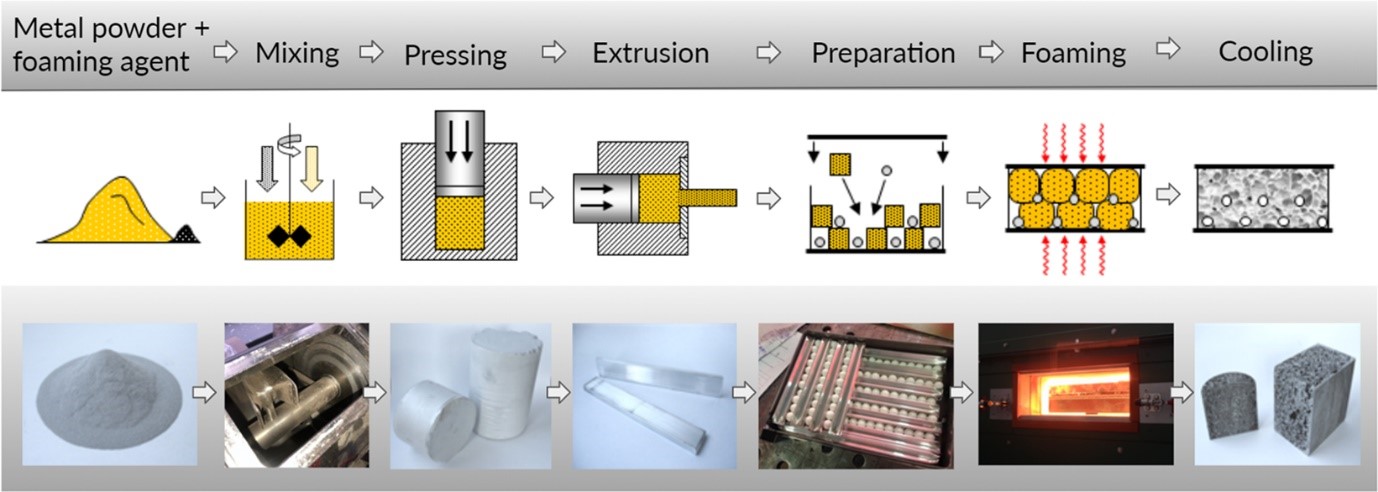

  • Utilises current manufacturing techniques
  • Open to optimisation
  • Open to a range of geometries and dimensions
  • Can resist forcible entry for over 10 minutes (Centre for Applied Science and Technology of the Home Office in the UK)

Applications

  • Protection from forcible entry
    • Banks
    • Business security
    • Data centres
    • Prisons
  • Light weight security
    • Bike locks
    • Security vehicles
    • Safety boxes
    • Panic rooms
  • Defence Sector
    • High security
    • Ballistics
    • Blasts
  • Health and Safety
    • PPE – shoe soles
    • Lightweight panels

Step change in the weight-performance of forcible entry materials

Current materials to resist forcible entry or impacts tend to rely on increasing mass to increase resistance, this leads to limiting trade-offs as the weight of panels increase significantly and the corresponding issues.

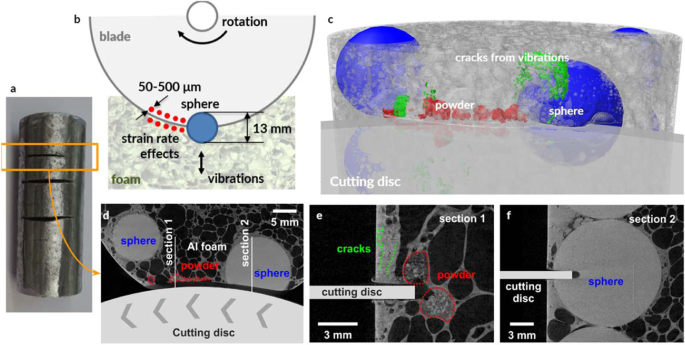

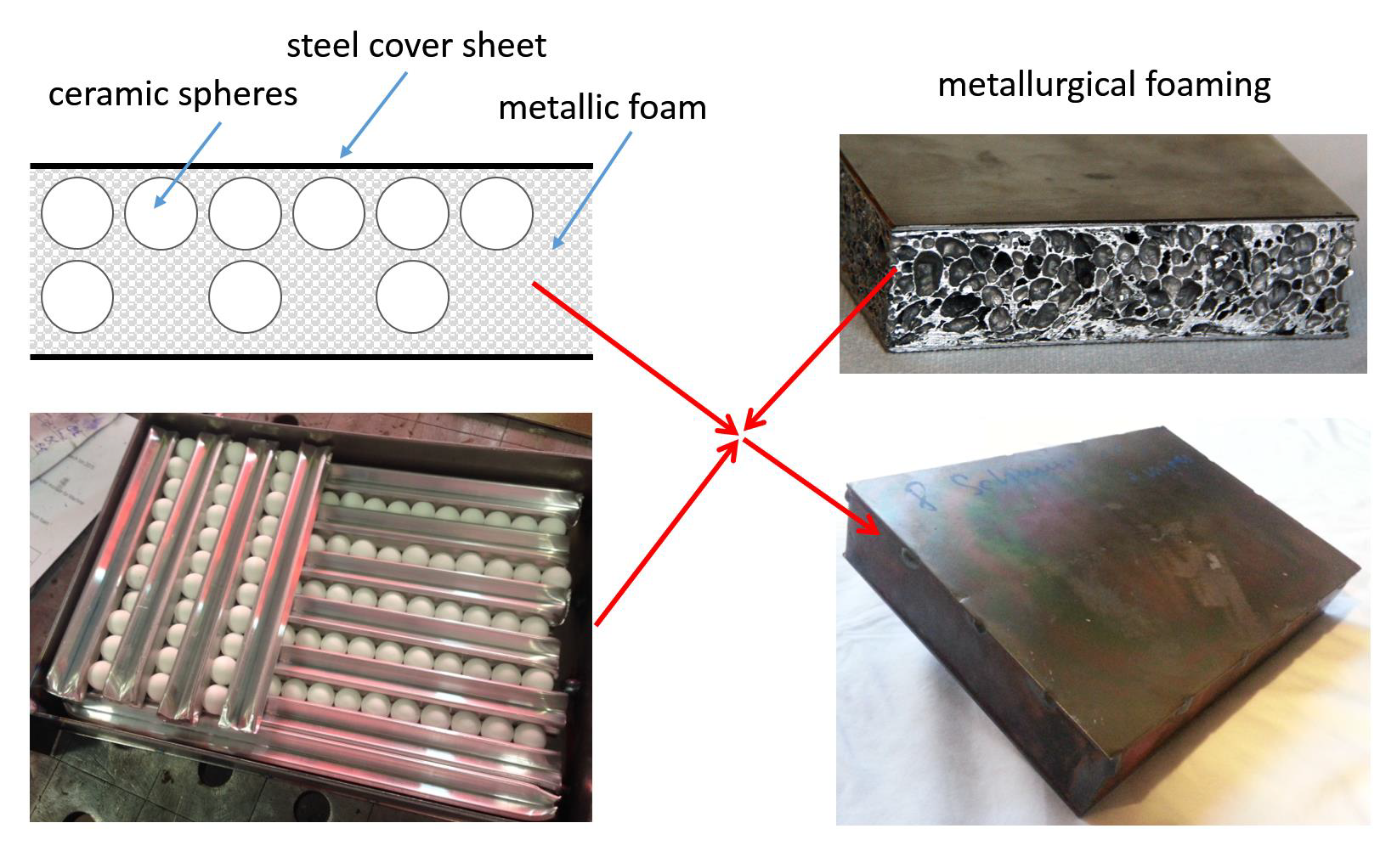

This new material concept dubbed Proteus after the shape-shifting Greek god, in addition to acting as a hard surface that resists external pressure, the material turns the force of the drill or cutting mechanism back on itself, as the ceramic spheres create vibrations that disrupt the external force. These vibrations created can destroy the cutting blade through the aggressive movements, or widen a waterjet and thus depower.

The material has a further defence mechanism, as any attempt to cut the material breaks the ceramic spheres into smaller fragments which harden as the speed of the cutting tool is increased acting like

Video

https://youtu.be/S8no-4z9hbM

Journal

https://www.nature.com/articles/s41598-020-65976-0
